The BAMF 42 Degree CV

Drive Line Service of West Sacramento

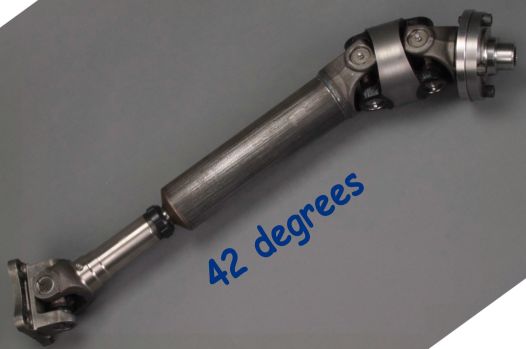

BAMF driveline

  • 32mm cup (comparable Dana 1.5 ton, 1410 series )
  • 5" Overall Diameter
  • .750" diameter stud to align and center the CV unit (others use .500")
  • All moving parts are serviceable through easily accessible grease fittings
  • 42 degree angle capability
  • Balances @ over 2500 RPMs
  • Can be adapted for Dana model 18, 20, 300, New Process 203, 205 and Atlas transfer cases
  • Smooth operation
  • The most durable high angle CV driveline you can buy
  • Developed using continuous duty industrial components
  • Over 1,000 units on the road.

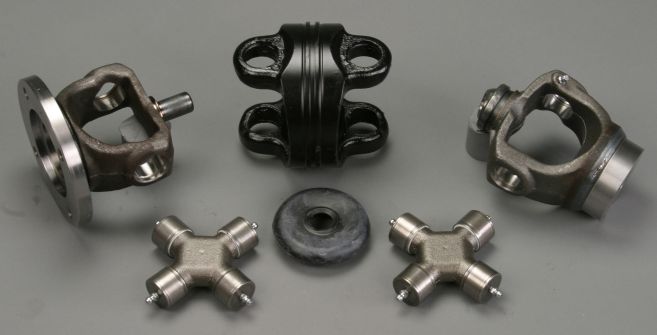

exploded picture






The dimensions of the BAMF flange are the same as the Saginaw flange pattern. The only difference is that our holes are tapped with a 12mm thread, just like Ford uses.

If you have a Ford flange, we can sell you an aluminum bushing that will reduce the 3.125" pilot to the Ford 2.00".

Our 42 degree CV can be adapted to fit nearly any transfer case provided there is clearance.



The opposing universal joint must be 1350 series or larger.



It can be machined for tube sizes from 2.00" to 3.00".



We do not recommend using a BAMF driveline as a daily driver. Although it will perform at high RPMs, the life expectancy of the CV will be compromised. When we designed this unit, our intention was to solve extreme front driveline angle problems.



As of 9-1-2007 we have over 1,000 BAMF drivelines on the road. Failures have been few, and almost always due to grease starvation, either caused by poor angle setup, or continuous duty at high RPMs. Both situations produce heat, which is the killer of all moving parts.



We will admit that this CV will not cure all application problems. However, to our knowledge, it is the best product of its kind.



In most cases, this unit comes assembled.
